# Updating an Existing Zone

How to update or edit a zone after it has been added.

To update or edit an existing zone:

- Start by going to the Settings icon in the top right and selecting “Zone Map”.

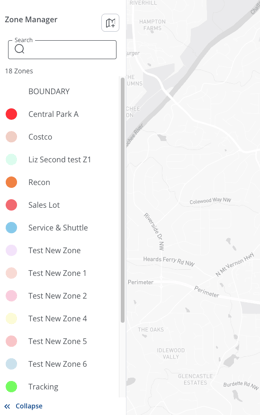

- You will be directed to the Zone Map page with the Zone Manager already opened.

![zone map 1](https://support.cognosos.com/hs-fs/hubfs/Knowledge%20Base%20Import/31128998527507.png?width=260&height=415&name=31128998527507.png)

- Select any existing zone on the list by either clicking or searching for your desired zone you want to edit.

**Helpful Tip:** To easily navigate to any zone in the map, click on the zone in the zone manager and it will direct you to that zone on the map

- To change the zone’s display name, fill color, or border color, simply adjust your values:

![zone edit 1](https://support.cognosos.com/hs-fs/hubfs/Knowledge%20Base%20Import/31128998606099.png?width=201&height=263&name=31128998606099.png)

- Click "Apply"
- Be sure to click "Save" again on the banner at the top to save your changes.

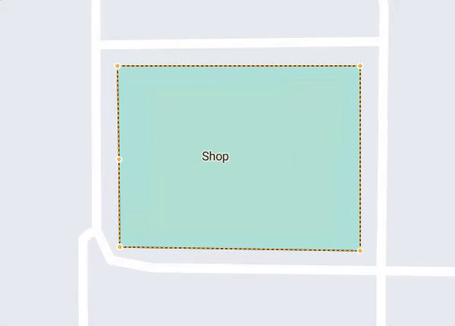

 To edit the zone’s shape or location, find the zone on the map and click on it.

- - To adjust points on the map, select them, then click them again and drag them to a new location.
    - To add a new point to a zone, select one of the orange dots midway between existing points, and drag the new point into place.
    - To relocate the zone entirely, simply drag the zone around on the map.

![](https://support.cognosos.com/hs-fs/hubfs/Knowledge%20Base%20Import/31128998734995.gif?width=455&name=31128998734995.gif)

- When you are finished, click "Apply" and then be sure to "Save" changes at the top
