Getting Started with the Map

Learn about navigating the map interface, deciphering map icons & using map features.

As one of three primary methods for viewing and accessing information regarding vehicles and tags, the Map option provides a Google-based map view of the property with options to view detailed data, define/edit zones, and locate vehicles and tags.

Select Map from the portal menu to access this view. Depending on the Data load option defined in the user’s profile, the map will either display all vehicles (clusters shown in blue circles) or without vehicles (no clusters). In the later case, the user needs to perform a search or filter to display icons.

Change the map view (all vehicles or only filtered/searched vehicles) by using the Search View/Show All toggle setting. Refer to the My Profile article for more information.

The map is in view mode. Depending on your user role the view option may be the only option available; edit functionality is reserved for users with the Administrator user role or higher.

Map Overview + Iconography

Depending upon the data load setting, the map may or may not load with vehicle clusters shown. When set to ‘on’ (show all vehicles), the map shows clusters of assets located in defined zones, as well as zone counts and capacity. When the data load option is ‘off’ (Search View), the map will not display any vehicle or tag icons until a search or filter is performed.

In Search View, you must select a filter or perform a search for the map to display any clusters or icons. The top of the map displays the search/filter criteria and the right pane dhows the number of vehicles in the search. Once the search is complete, the map can be used as described throughout this article.

At the individual icon level, the vehicle icon displays according to the asset’s status:

		Asset can be located here
		Asset is located in or was last ‘seen’ in a defined exit zone
		Asset was last located here
		Asset is attached to a tag with a dead battery

At the individual icon level, the tag icon displays according to the tag’s status:

If your facility utilizes exit monitors, you may see the red icon on the map when viewing clustered vehicle information. This indicates that there are vehicles currently located in a zone identified as an exit monitor zone.

Map Views + Menus

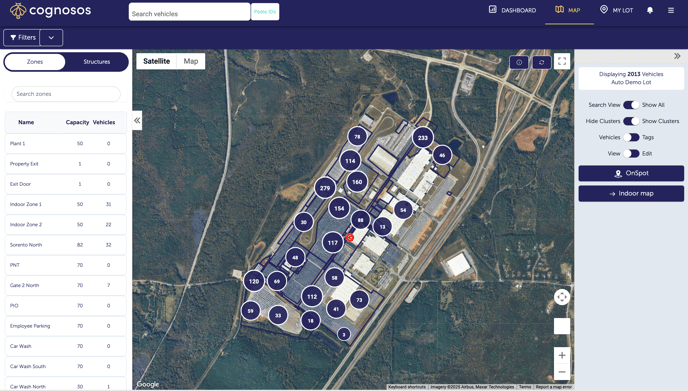

Use the Satellite and Map options in the upper left corner of the map to switch between the Google satellite view and drawn outline view of the facility. For a full screen view of the map (or to return to the window view) use the screen toggle option located on the top right corner of the map.

Zoom in and out by using the + and - buttons on the bottom right; use your track pad if your device supports that feature.

The left menu pane contains geo-map definitions (zones, structures) and real time asset counts for each zone. Use the carat arrows adjacent to the search bar to open and close the left menu pane.

A zone is any physical space or area on the lot that holds vehicles (e.g., garage, parking lot, parking space, car wash, etc.). A structure can be the entire facility or specific buildings/lots within the facility; a structure contains the zones.

The Zones tab can be searched by a specific zone. The Search box provides standard search functionality. The zones list refreshes as numbers and/or letters are input.

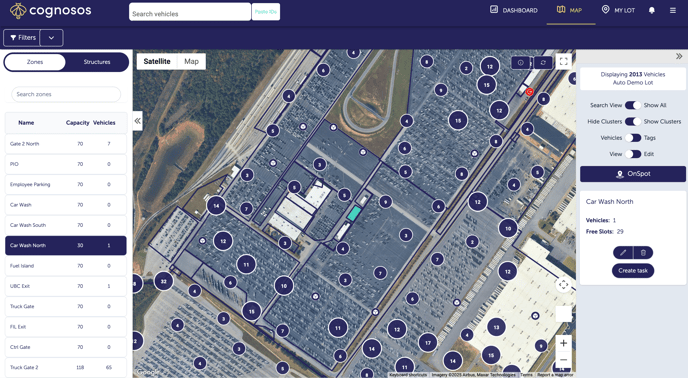

When you select a zone from within the Zones list, the map dynamically refreshes to display the selected zone in teal blue and the right-hand menu displays the number of assets and free slots in that zone.

Use the information icon on the top right to open the map legend (displays vehicles or tags, depending on toggle setting).

The right pane also includes options to change cluster views and map mode (mode only for Administrator user roles).

The number of vehicles shown is the number of attached vehicles (regardless of attached status). Nonattached vehicles are NOT included in the map display; run a filter to view nonattached vehicles.

Vehicle clusters are the default view mode. Set to Hide Clusters to display individual vehicles or tags (setting applies to both). This is recommended only when you've used search and/or filters to decrease the volume of displayed vehicles or tags.

Use the Vehicles/Tags toggle in the right-hand menu to switch the display between vehicle and tag clusters.

OnSpot launches the OnSpot reporting feature.

When in the map is in edit mode, the right menu provides facility management functions related to zone management. Editing of zones is available only to Administrator user roles and higher.
